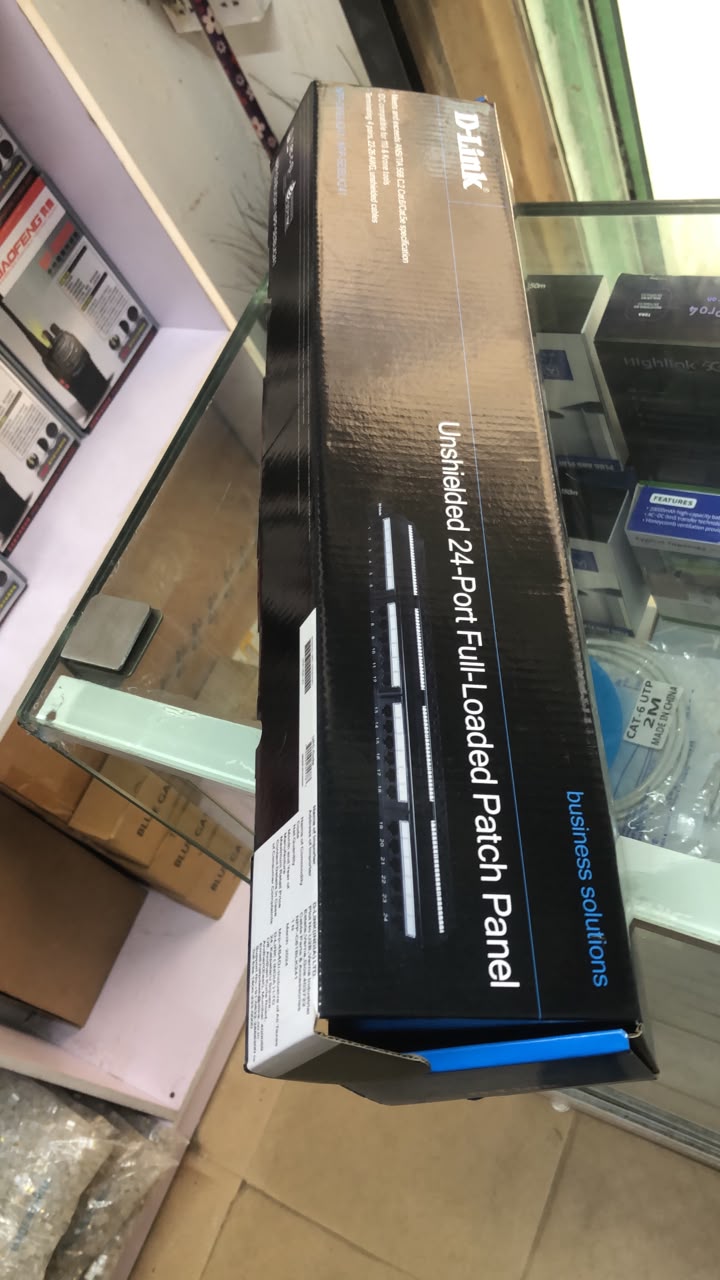

D-Link Unshielded 24-Port Full-Loaded Cat6 Patch Panel

D-Link Unshielded 24-Port Full-Loaded Cat6 Patch Panel



Product Overview



The D-Link Unshielded 24-Port Full-Loaded Patch Panel is a professional network infrastructure component designed to organize and terminate Ethernet cabling in structured cabling installations.



With 24 RJ45 ports, this full-loaded patch panel provides a convenient and organized way to terminate network cables and connect them to switches, routers, servers, and other network equipment. Its 19-inch rack-mount design makes it ideal for standard network cabinets and server racks.



The panel is particularly suitable for offices, data centers, schools, hotels, CCTV/networking installations, and other environments where a neat, organized, and scalable network cabling system is required.





—



Key Features



24 fully loaded RJ45 ports



Unshielded design



Designed for Cat6 structured cabling



Standard 19-inch rack-mount form factor



Numbered ports for easy identification



Integrated labeling areas for cable identification



IDC punch-down termination



Supports organized network cable management



Suitable for professional structured cabling installations



Strong and durable rack-mount construction



Ideal for offices, server rooms and data centers







—

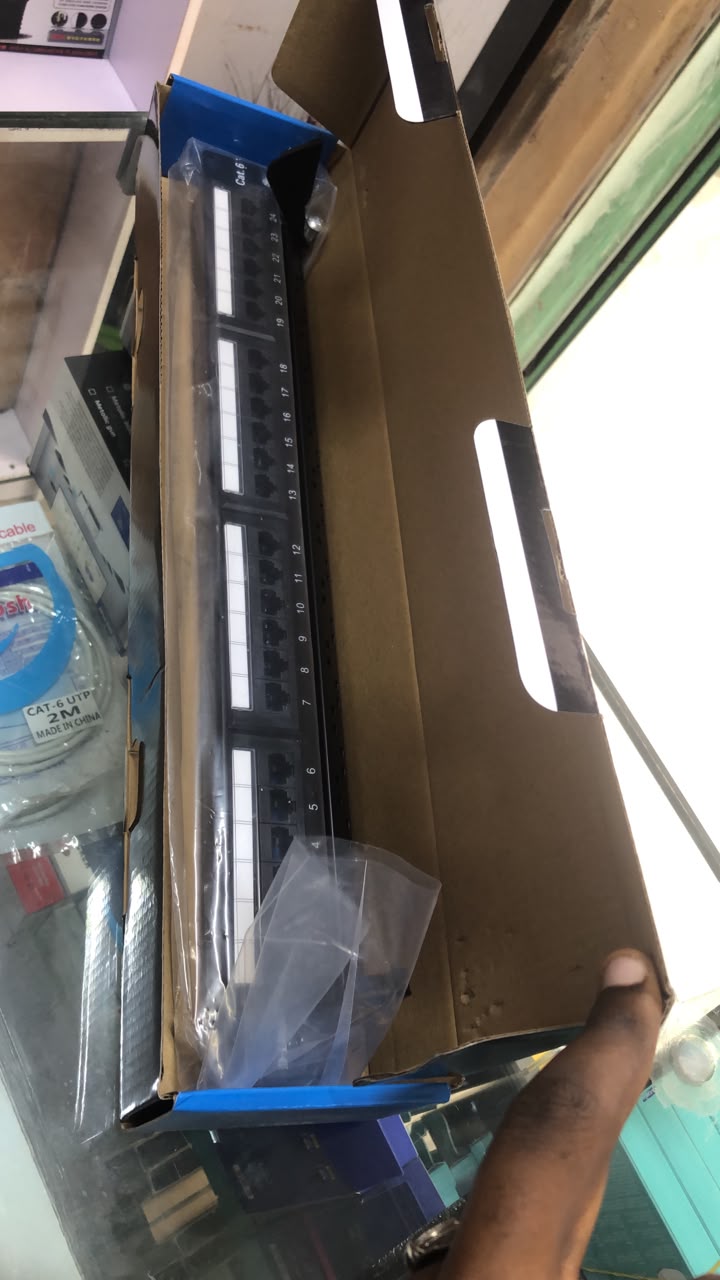

24-Port Full-Loaded Design



The patch panel comes equipped with 24 RJ45 ports, allowing multiple Ethernet cables to be terminated and organized from a central location.



Each port is numbered from 1 to 24, making it easier for network technicians to identify individual connections and troubleshoot or maintain the network.





—



Cat6 Network Cabling



Designed for use with Cat6 network cabling, the patch panel is suitable for modern Ethernet installations where reliable, organized cable termination is required.



It can be incorporated into structured cabling systems connecting computers, switches, wireless access points, IP cameras, VoIP phones, servers and other network devices.





—



19-Inch Rack Mount Design



The standard 19-inch rack-mount design allows the patch panel to be installed neatly inside compatible network racks and cabinets.



Its rack-mounted format helps keep network infrastructure organized while making cable connections easier to access and manage.





—



IDC Punch-Down Termination



The rear of the patch panel provides IDC punch-down terminals for terminating network cables.



This allows installers to securely terminate cables while keeping individual connections organized and clearly associated with the corresponding front-panel RJ45 port.





—



Easy Port Identification



Each of the 24 ports is clearly numbered, while the front panel includes labeling areas.



This makes it easier to document connections—for example, identifying which port connects to a particular office, computer, access point, IP camera or switch port.



Proper labeling can significantly simplify future maintenance and troubleshooting.





—



Unshielded Design



The unshielded construction makes this patch panel suitable for standard UTP-based structured cabling installations.



It can be used in a wide range of ordinary office, commercial and residential networking environments where shielded infrastructure is not required.





—



Ideal Applications



The D-Link 24-Port Patch Panel is suitable for:



Office network installations



Server rooms



Data centers



Network cabinets



Structured cabling projects



Schools and educational institutions



Hotels and guest houses



CCTV/IP camera installations



VoIP telephone systems



Wireless access point installations



Small and medium-sized businesses



Home network infrastructure







—



Benefits of Using a Patch Panel



A patch panel helps create a cleaner, more organized and easier-to-maintain network installation.



Instead of connecting permanent cables directly to network switches, cables can be terminated at the patch panel and then connected to the appropriate switch ports using short patch cables.



This arrangement makes network changes, troubleshooting and maintenance easier while helping reduce cable clutter inside the rack.





—



Technical Specifications



Specification Details



Brand D-Link

Product Type Patch Panel

Port Count 24 Ports

Port Type RJ45

Cable Category Cat6

Design Unshielded

Loading Full-Loaded

Mounting 19-Inch Rack Mount

Termination IDC Punch-Down

Port Identification Numbered 1–24

Application Structured Network Cabling

Use Data, Ethernet, CCTV, VoIP & Networking







—



Why Choose the D-Link 24-Port Patch Panel?



The D-Link Unshielded 24-Port Full-Loaded Patch Panel provides a practical way to organize network cabling in professional installations. With 24 RJ45 ports, Cat6 compatibility, IDC termination, clear port numbering and a standard 19-inch rack-mount design, it is well suited for structured network infrastructure.



Whether you’re setting up a new office network, expanding an existing installation, or organizing a server rack, this patch panel helps keep Ethernet connections neat, accessible and manageable.
