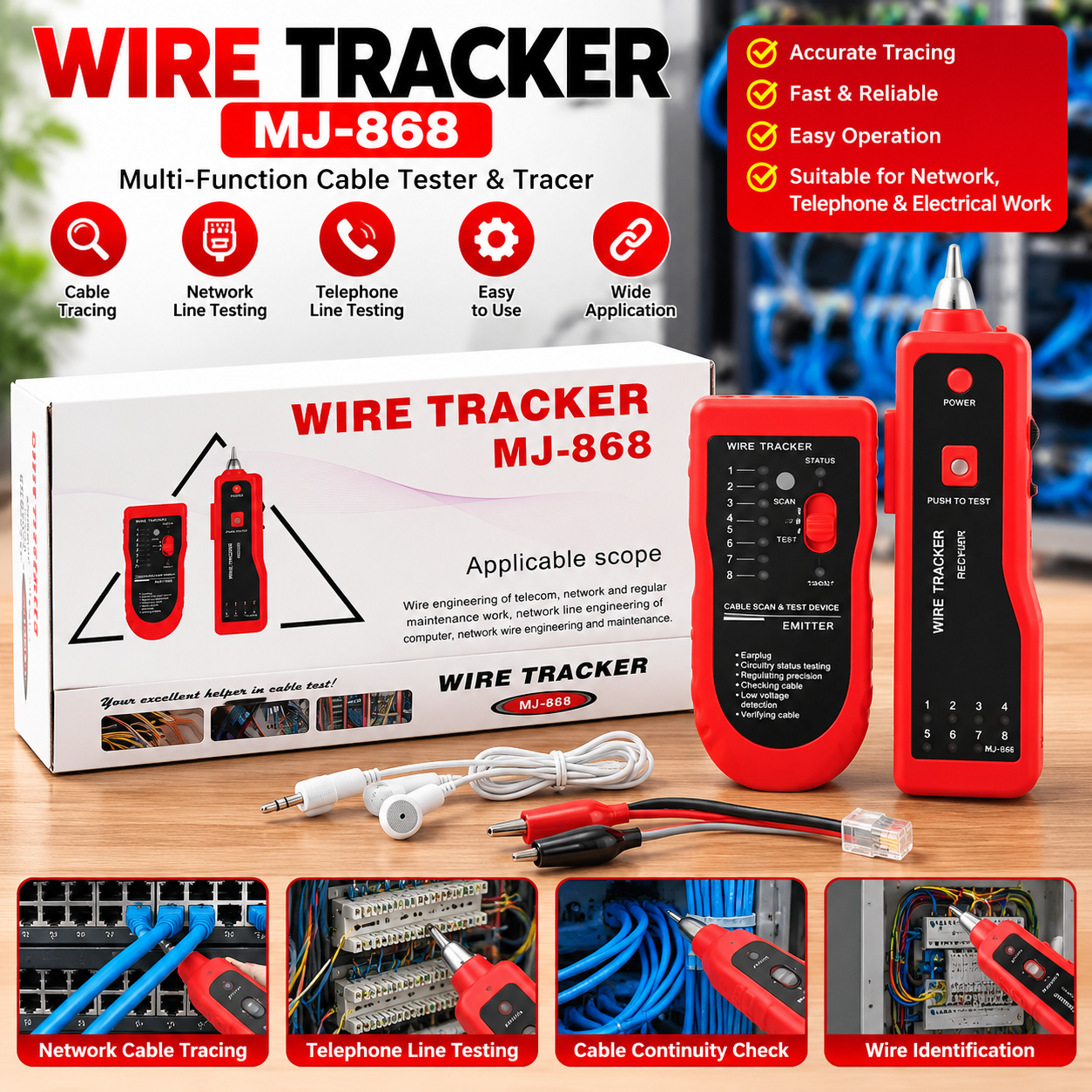

Wire Tracker MJ-868 – Professional Cable Tracer & Network Line Tester

Wire Tracker MJ-868 – Professional Cable Tracer & Network Line Tester

The Wire Tracker MJ-868 is a practical multi-function cable tracing and testing tool designed for network technicians, telecom engineers, installers, electricians working with low-voltage wiring, and IT maintenance professionals.

It uses a transmitter/emitter and receiver to help you identify and trace cables, locate wires within bundles, check cable continuity and troubleshoot common network wiring faults. It is particularly useful for RJ45 Ethernet and RJ11 telephone wiring, with adapters allowing use with other compatible low-voltage metal cables.

Whether you’re installing a new network, troubleshooting an existing LAN, identifying an unknown cable, or performing telephone-line maintenance, the MJ-868 helps make cable identification faster and more convenient.

🔧 Key Features

Cable Tracing & Wire Identification

Quickly locate the cable or wire you need among bundles of similar cables using the transmitter and receiver system. This is especially useful in network cabinets, patch panels and telecommunications installations.

RJ45 & RJ11 Support

The MJ-868 is designed for tracing and testing RJ45 network cables and RJ11 telephone lines, with adapters available for other compatible cable types.

LAN Cable Testing

The tester can help identify common wiring conditions such as open circuits, short circuits, miswiring and reversed connections, depending on the test configuration.

Telephone Line Testing

It can be used to check telephone-line status and help identify telephone wiring during installation and maintenance.

Audible Signal & Adjustable Volume

The receiver produces an audible tracking signal, while its volume can be adjusted to make cable identification easier. An earphone can also be used in noisy working environments.

LED Indicators

LED indicators provide visual information during testing and tracing, helping technicians identify the cable or test condition more easily.

Built-In Spotlight

The receiver includes a light function that can be useful when working inside darker cabinets, equipment rooms or other poorly illuminated areas.

Portable & Easy to Use

The handheld emitter and receiver design makes the MJ-868 convenient for field technicians who need a cable-testing tool they can carry from one installation to another.

—

What Can the MJ-868 Be Used For?

The MJ-868 is suitable for:

🌐 Ethernet/network cable tracing

☎️ Telephone cable tracing

🔌 RJ45 cable testing

📞 RJ11 telephone-line testing

🛠️ Network installation and maintenance

🖥️ Computer network troubleshooting

🗄️ Patch-panel cable identification

🏢 Office network maintenance

📡 Telecom installation work

🔍 Locating cables inside bundles

🔧 Cable continuity checking

⚡ Low-voltage wire identification

—

Ideal for Network & Telecom Technicians

The MJ-868 can be particularly useful when several cables are installed together and you need to determine which cable goes where.

Connect the transmitter to the appropriate cable and use the receiver to trace the signal. This can save time when working with complicated network installations, telephone wiring and cable bundles.

—

Technical Specifications

Specification Details

Model MJ-868

Product Type Wire Tracker / Cable Tester

Primary Use Cable tracing and testing

Supported Cable Types RJ45, RJ11 and compatible low-voltage metal cables

Testing Functions Cable tracing, continuity and wiring-condition testing

Detection Open, short, miswire/reverse conditions on supported configurations

Signal Type Multi-frequency pulse

Signal Output Approximately 8 Vp-p on listed versions

Power Supply 9V battery

Emitter Current Up to approximately 10 mA

Receiver Current Up to approximately 30 mA

Receiver Handheld wire-tracing receiver

Volume Control Yes

LED Indicator Yes

Spotlight Yes

Earphone Support Yes, on listed versions

Application Network, telecom and low-voltage cable maintenance

Published MJ-868 specifications vary somewhat between manufacturers and versions. For example, some listings specify a maximum transmission distance of 2 km, while others list 3 km, so this figure should not be treated as universal for every MJ-868 unit.

Important: This is a low-voltage cable tracing/testing tool and should not be connected to high-current/high-voltage electrical wiring.

—

Package Contents

Depending on the exact package supplied, the MJ-868 kit may include:

1 × MJ-868 transmitter/emitter

1 × MJ-868 receiver

RJ45 network cable/adapter

RJ11 telephone cable/adapter

Cable with crocodile/alligator clips

Earphone

User manual

Carry/storage case

Package contents can vary by supplier and production batch, so customers should confirm the exact accessories included with the unit before purchase.

—

Why Buy the MJ-868 Wire Tracker?

The MJ-868 Wire Tracker is a useful addition to any network technician’s toolkit. Instead of manually checking numerous cables one by one, the transmitter-and-receiver system helps you identify and trace the required cable more efficiently.

It is suitable for both professional network maintenance and everyday cable troubleshooting, particularly when working with RJ45, RJ11 and other compatible low-voltage cables.
